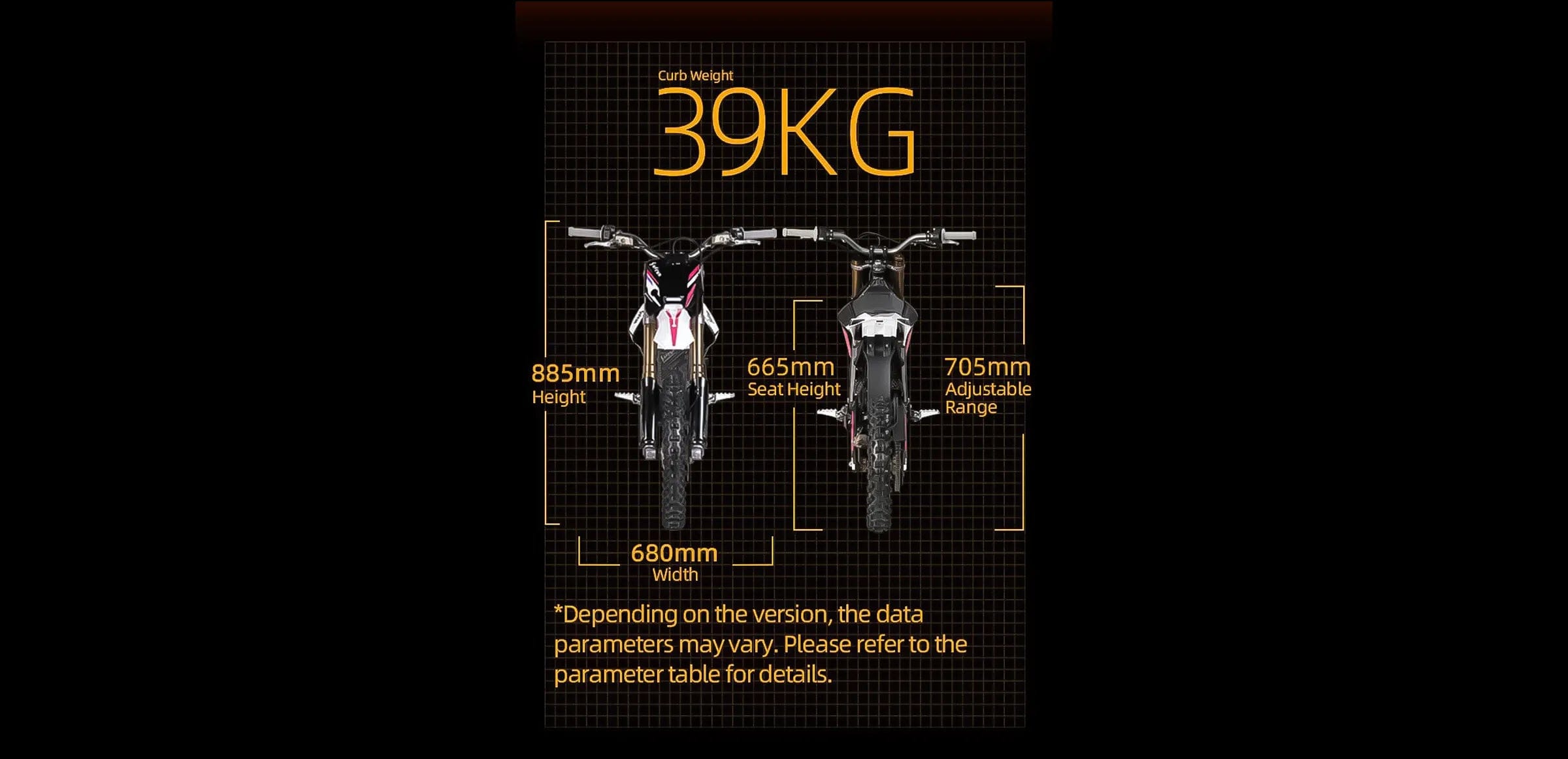

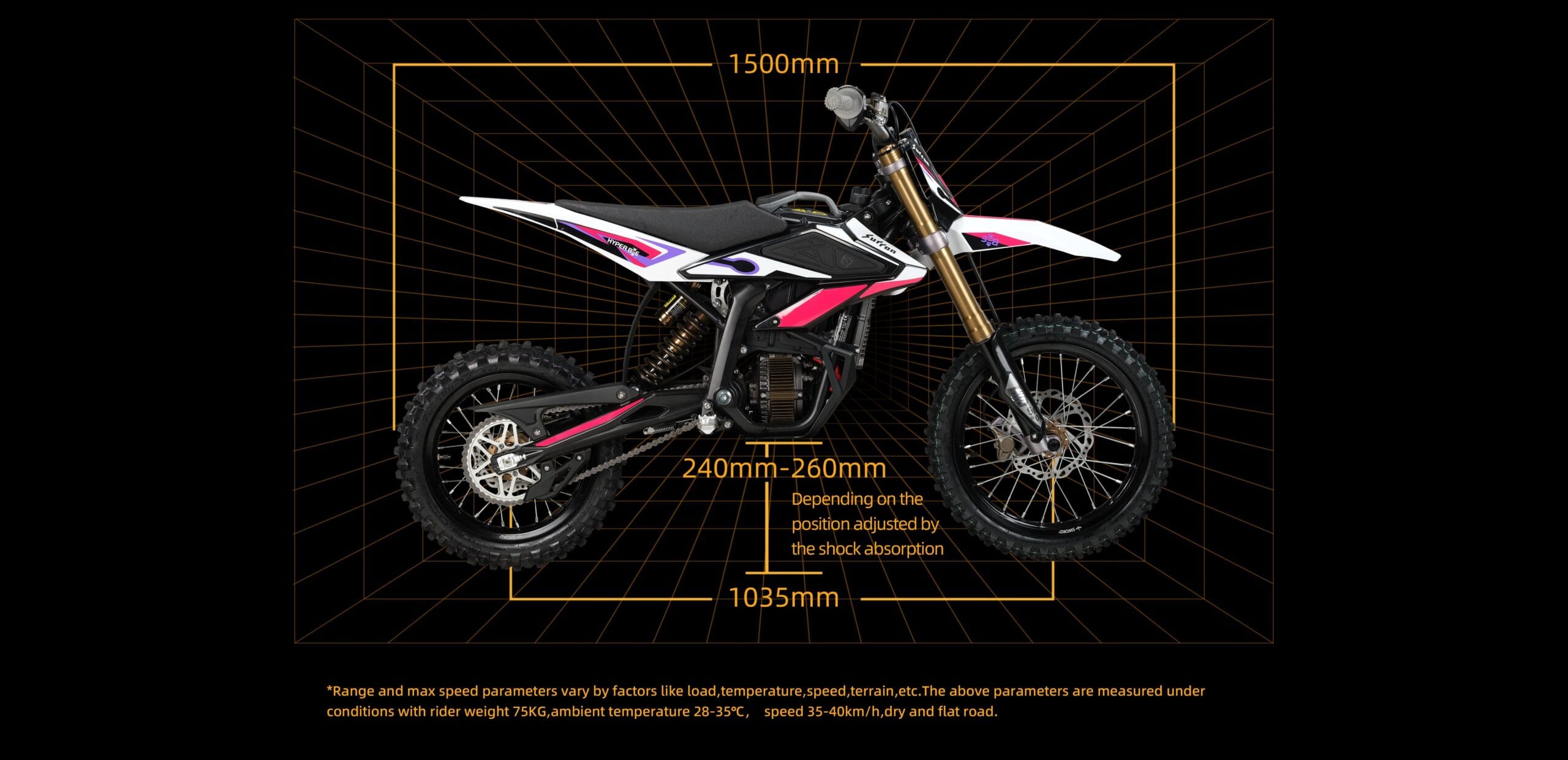

Dimension1500mmx680mmx885mm

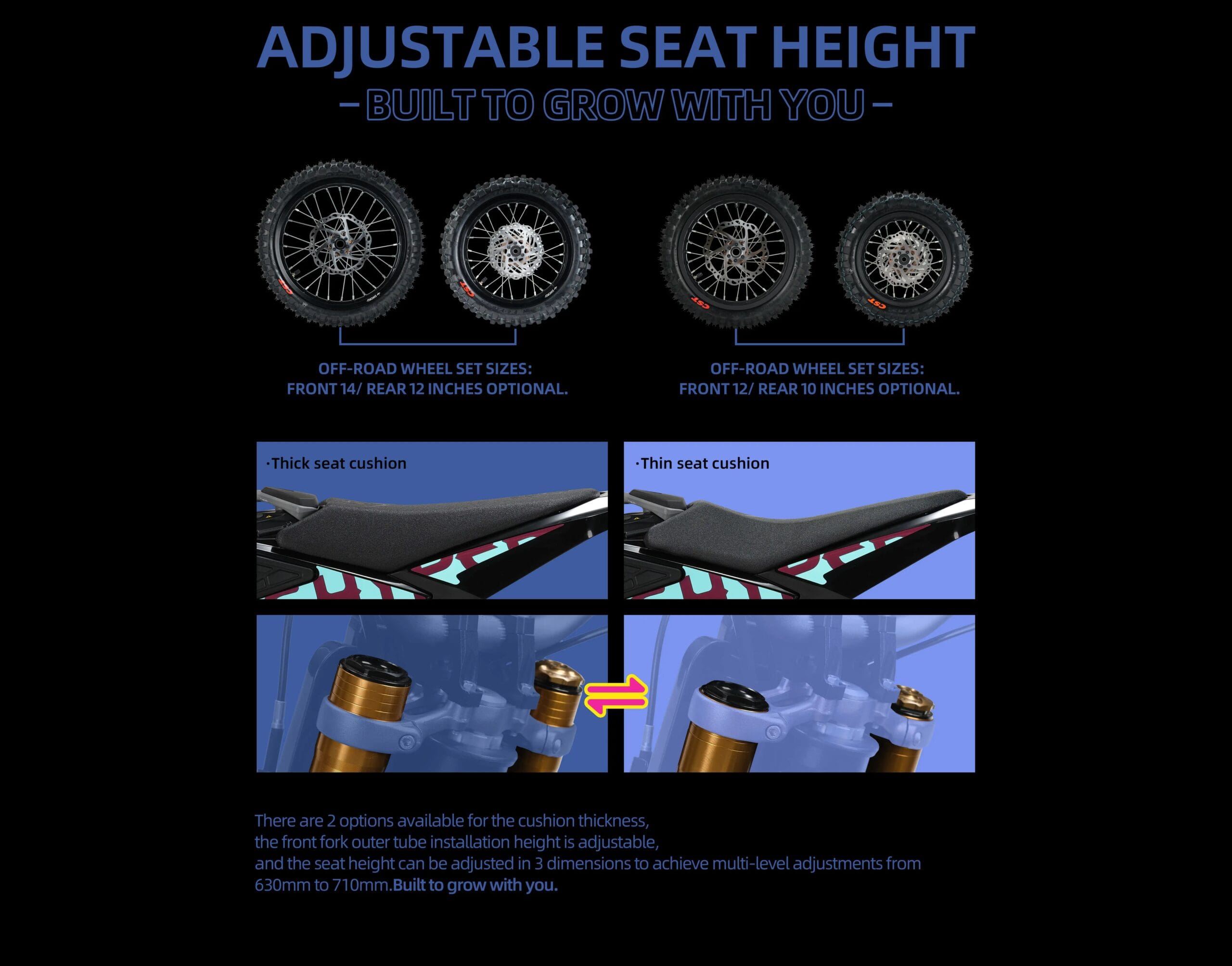

Seat Height685mm adjustable range 665mm-705mm
Curb Weight39kg
Ground Clearance240mm-260mm Depending on the position adjusted by the shock absorption
Max. Torque （on wheel）159N.m

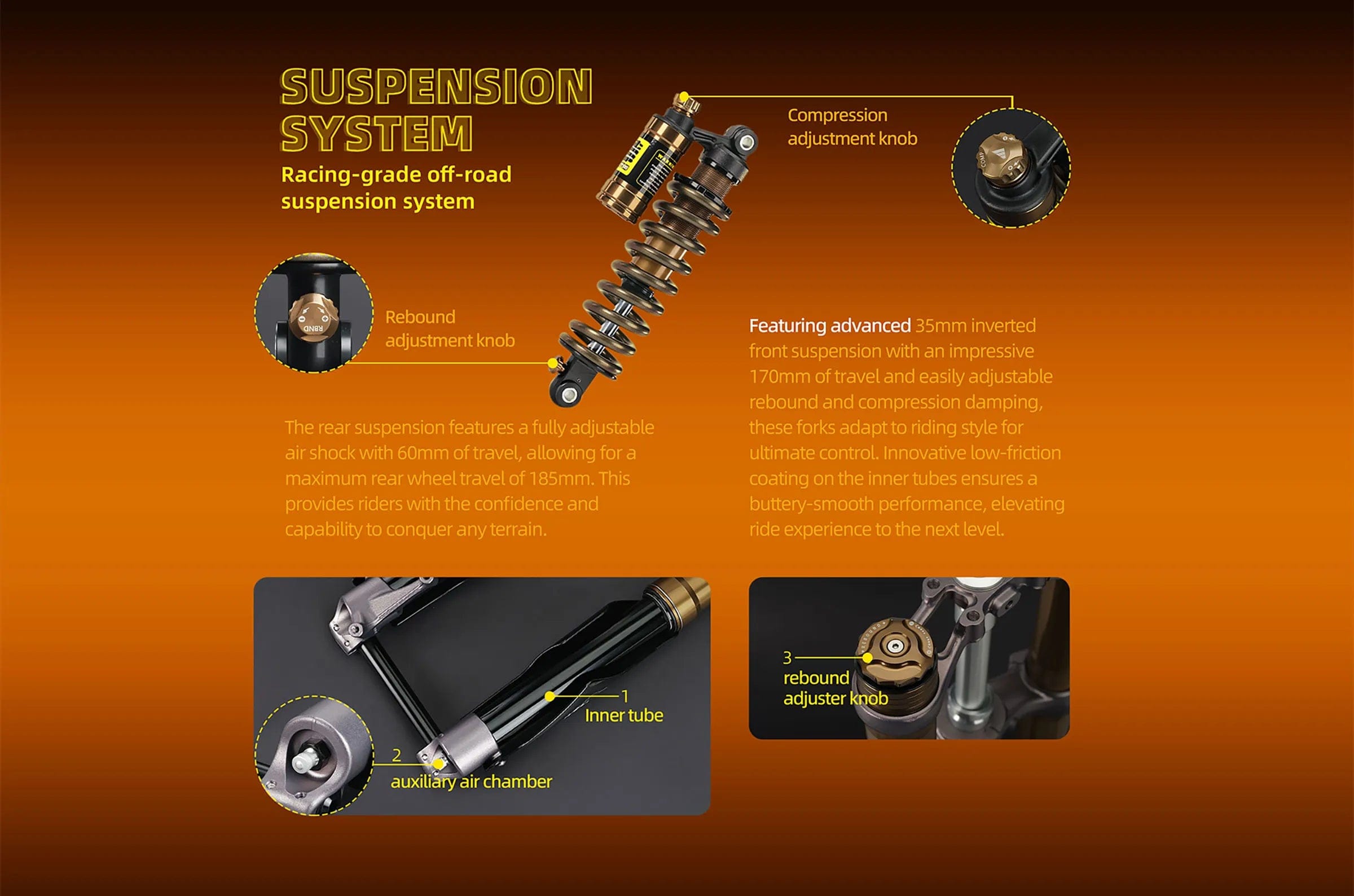

Front suspension system35mm inverted dual shoulder – oil spring type – adjustable rebound damping – adjustable compression damping pressure – total length 625mm, stroke 170mm
Rear suspension systemAirbag type adjustable 23Omm single rear shock 60mm/ 185mm
Wheel Base1035mm
Carrying Capacity65kg

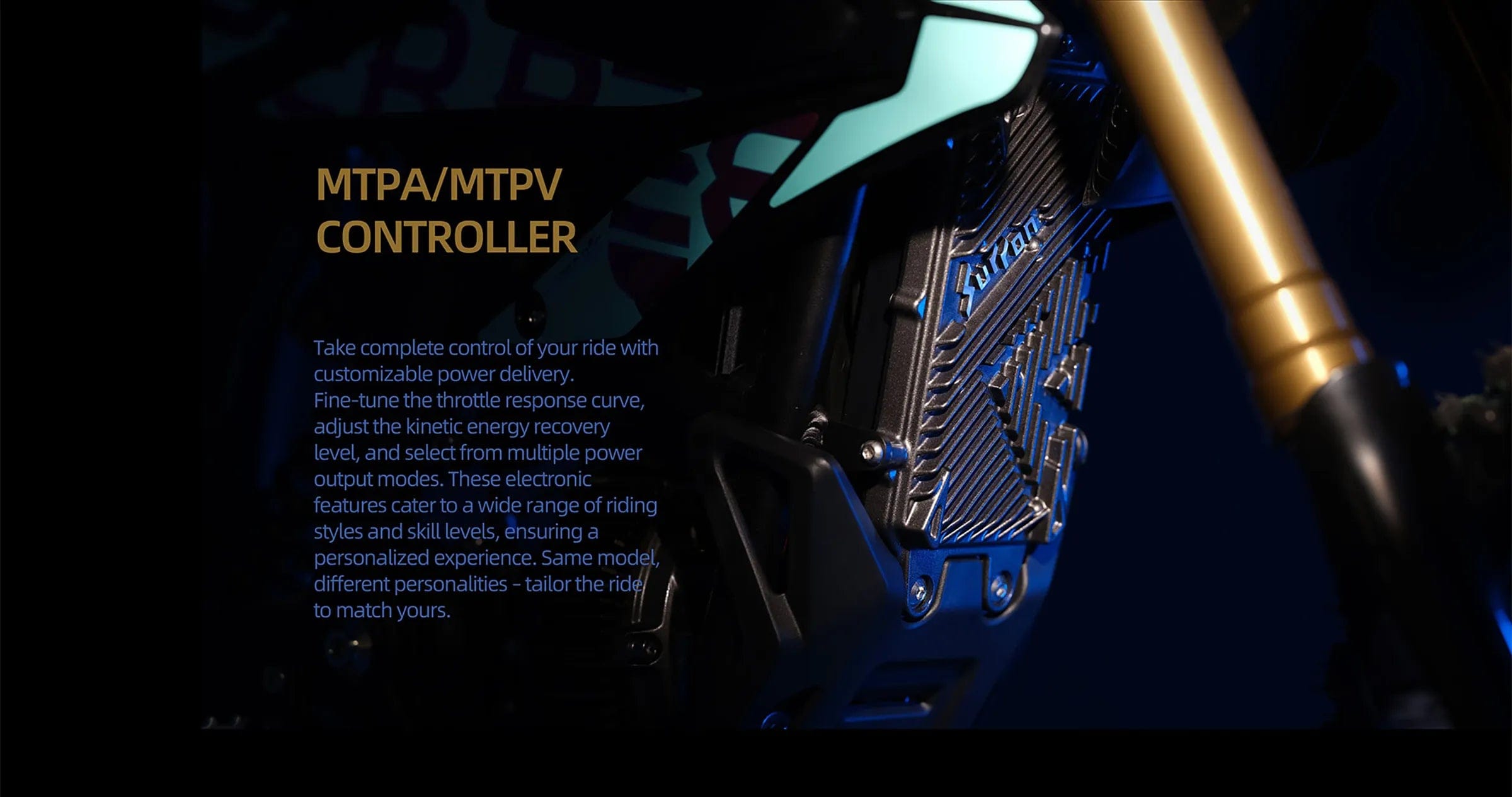

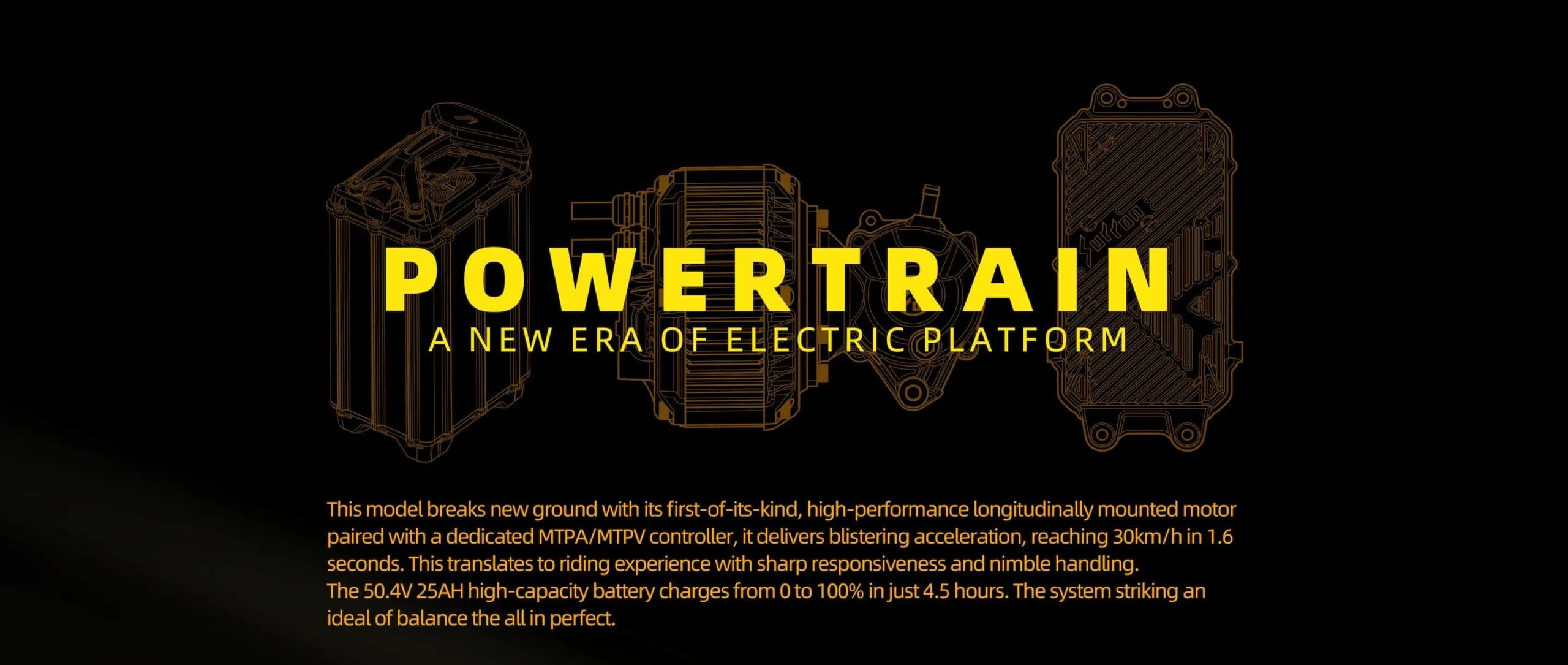

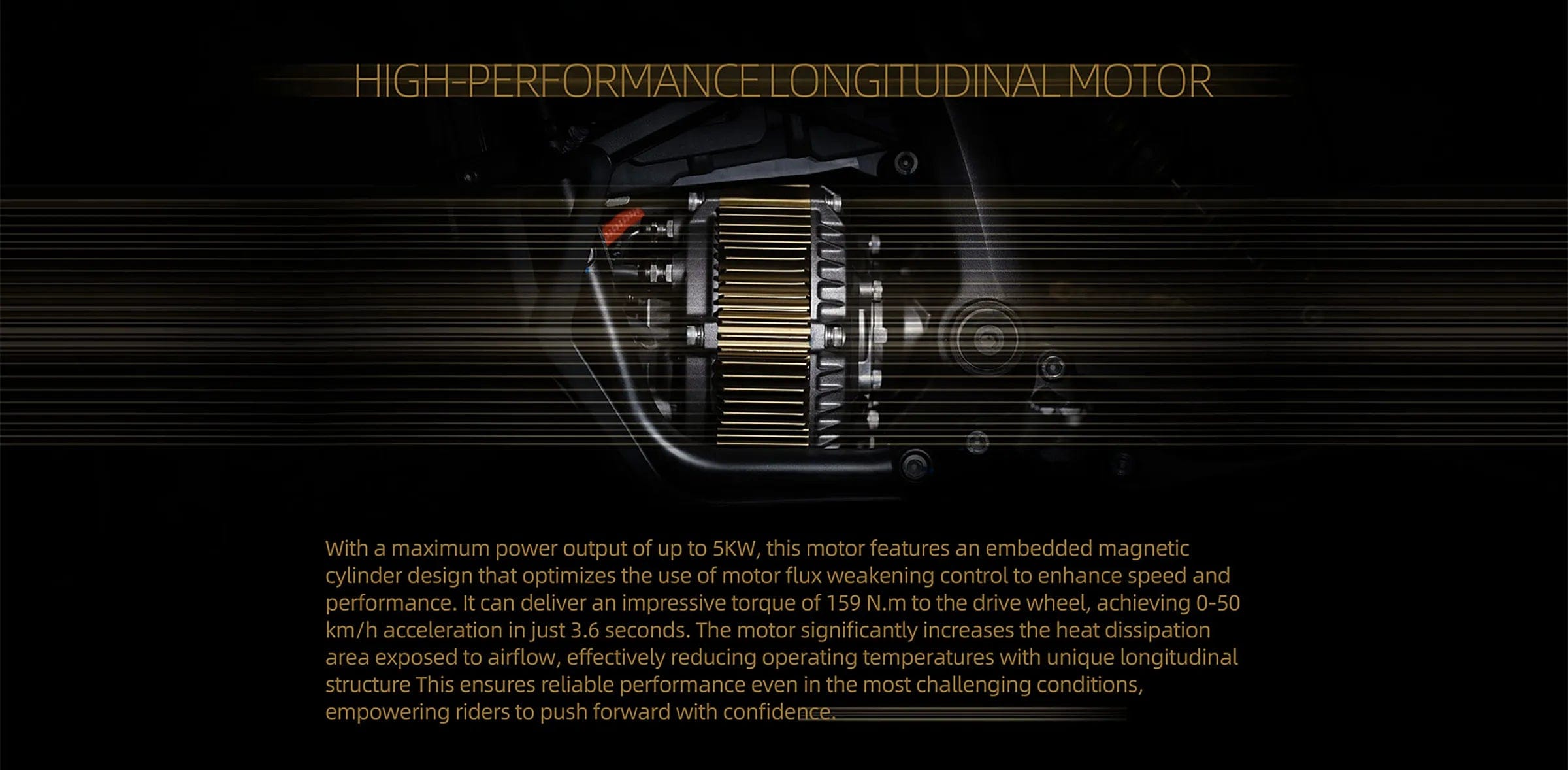

Power SystemPMSM, MTPA/MTPV Controller
Maximum Power（Motor）5kw
Riding Mode1/2/3/Reverse R
Assistance FunctionsSliding energy recovery with three-level adjustable levels

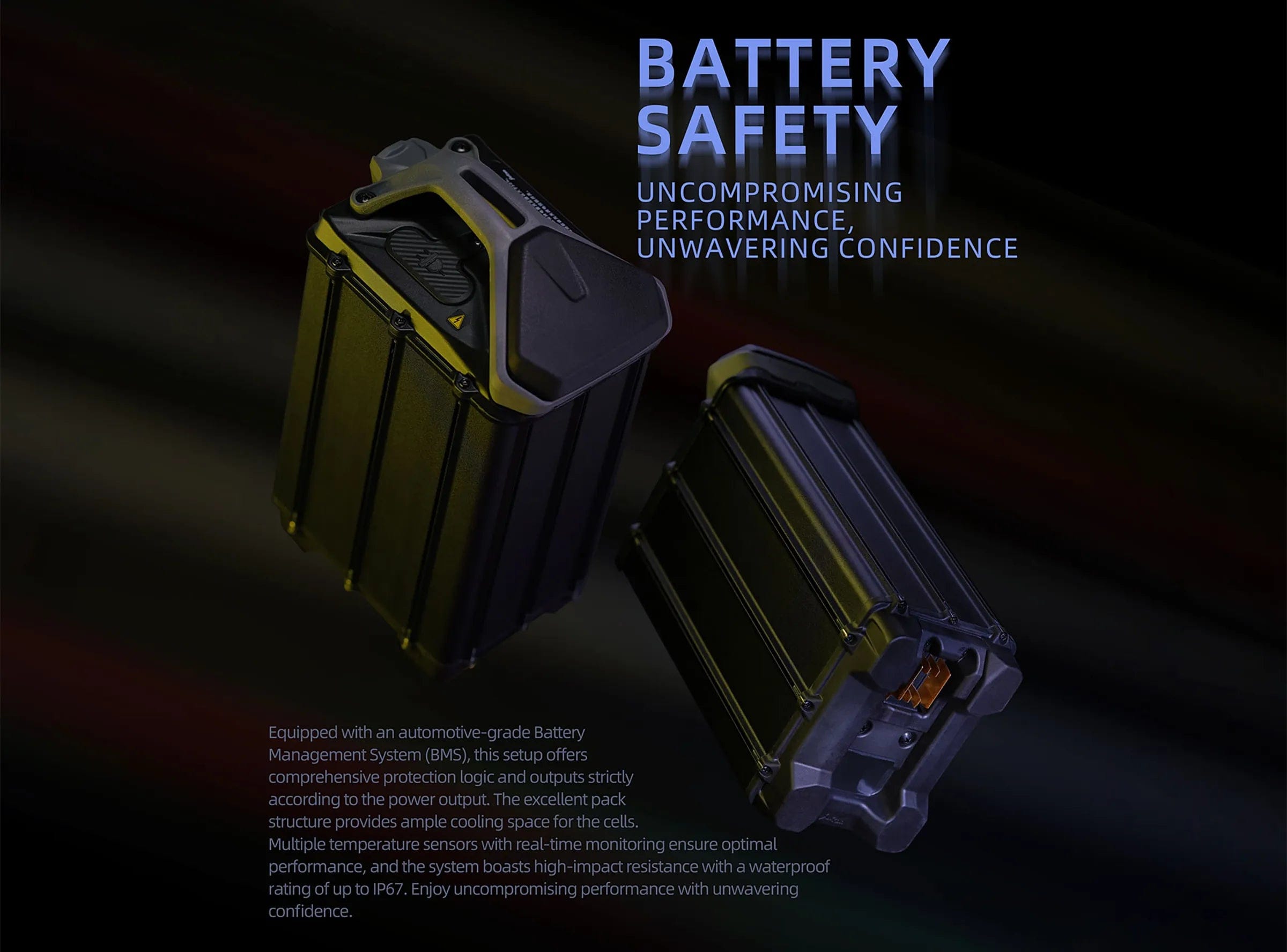

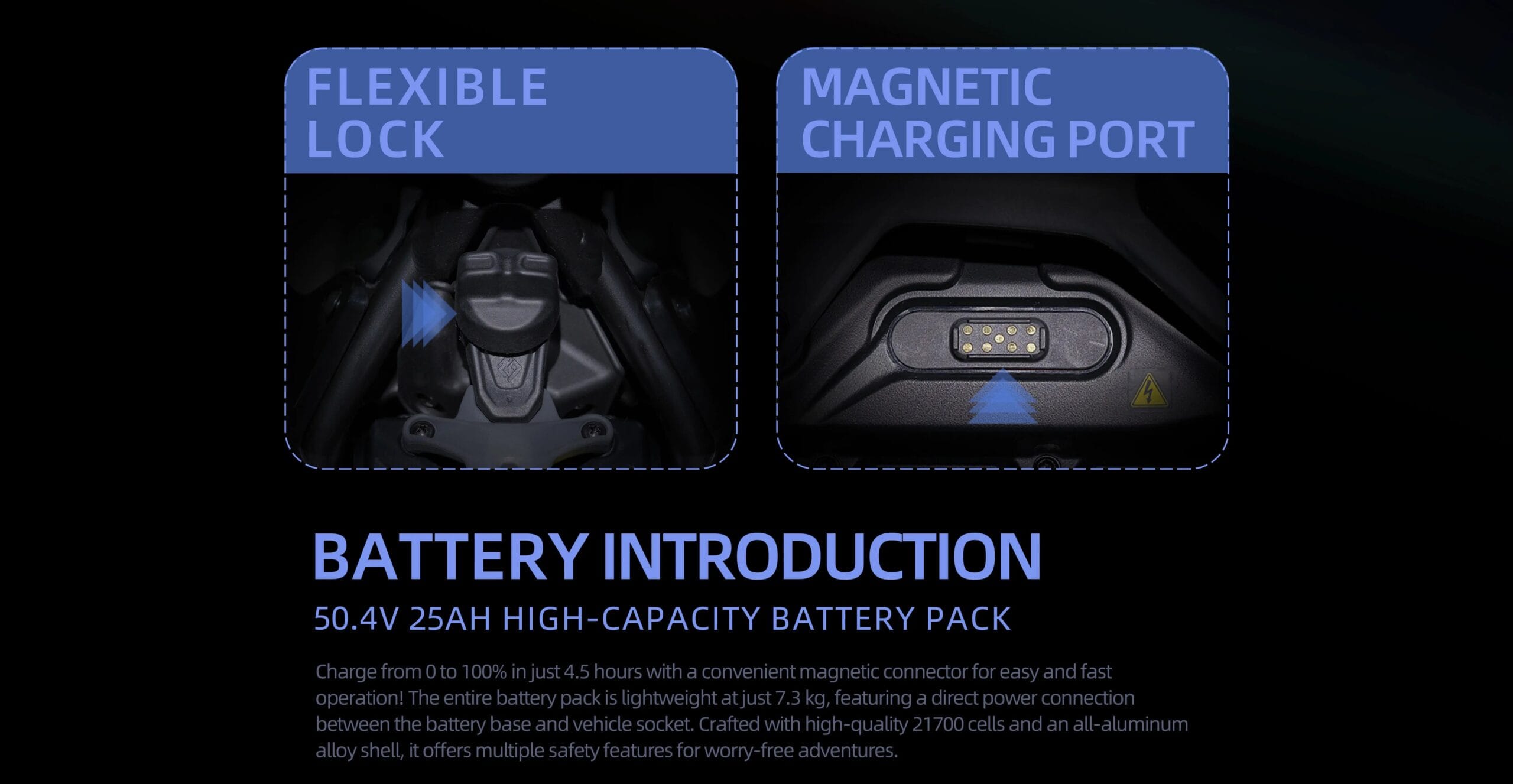

Battery Type50.4V/25AH Lithium-ion Battery pack
Throttle CurveThree-stage Adjustable
Primary Belt SystemPrimary gear drive + second chain drive
Charging ParameterPortable charger-magnetic charging-fully sealed
Top Speed55km/h
WMTC road50km@40km/h
Charge Time （20%-80%）2.5h
